cobo_testing
Table of Contents
Hardware Requirements
- µTCA crate equipped with MCH, JTAG modules, 1KW power supply
- CoBo v1.0 AMC
- 4 x AsAd boards, 4 x VHDCI cables and 4 x power cables
- Power supply 3.6V 6A minimum for Asads
- PC running Fedora, connected via Ethernet to MCH
- Xilinx JTAG programmer USB brick
- Micro-USB cable
Software Requirements
- NXP LPC chip should be flashed with VadaTech software
- FRU and SDR should have correct values
- Xilinx v14.7 tools should be installed on PC (xmd)
- GetController software suite should be installed on PC
- PC needs to run some version of DHCP server (dnsmasq), as well as NFS server.
Power

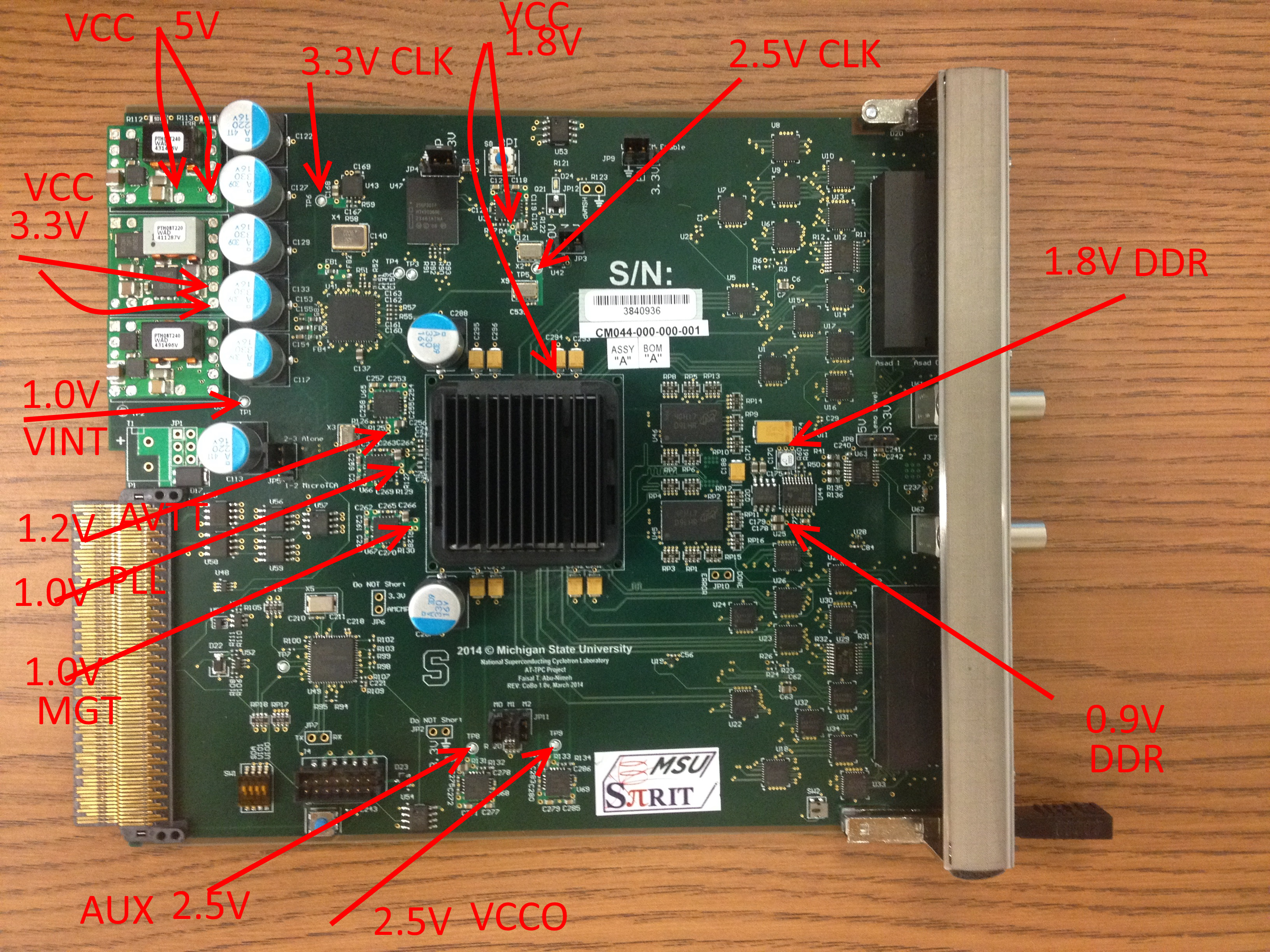

Click on Image below to see voltage test points.
LEDs
UART
Clocks
Memory
Stability
FRU & SDR
Ethernet
GET testing
Mechanical
