Performing a CSD

Insert the source FC
- D0738 for ARTEMIS-B; D0717 for HPECR
Open the Physapps launcher
- Switch to the Apps tab, “All”
Open Charge State Distribution Scan
Select source (selection popup may default to the upper left screen)
Adjust range and gap if desired
Click Scan start
Do not close the application until the scan is complete
When done, click Save the scan and save in the default folder

Comparing to previous scans

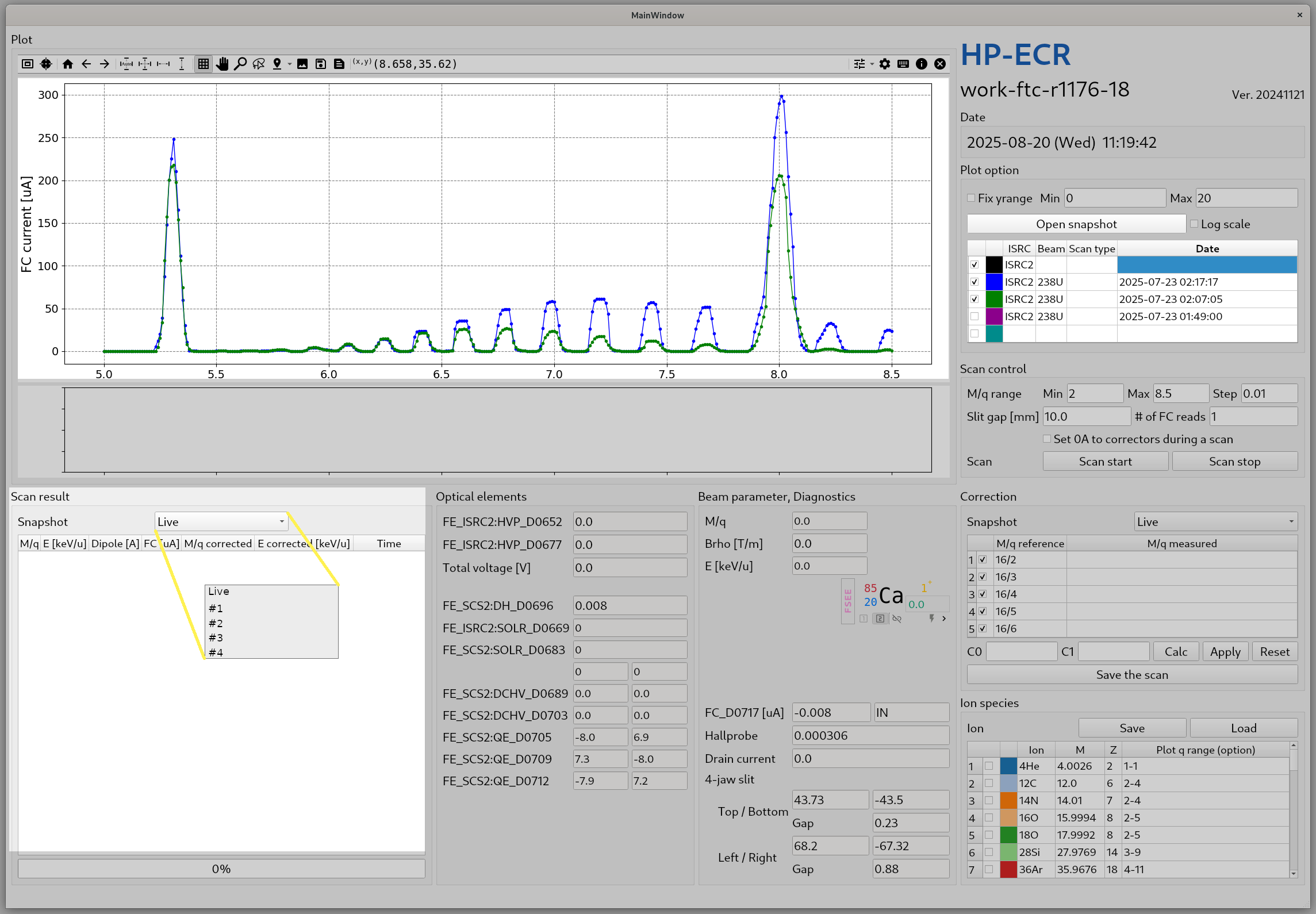

After scanning, click the Open snapshot button and select the desired scan
After opening, you can show or hide any loaded snapshots, make sure to select the correct snapshot when using the tools!

Applying correction

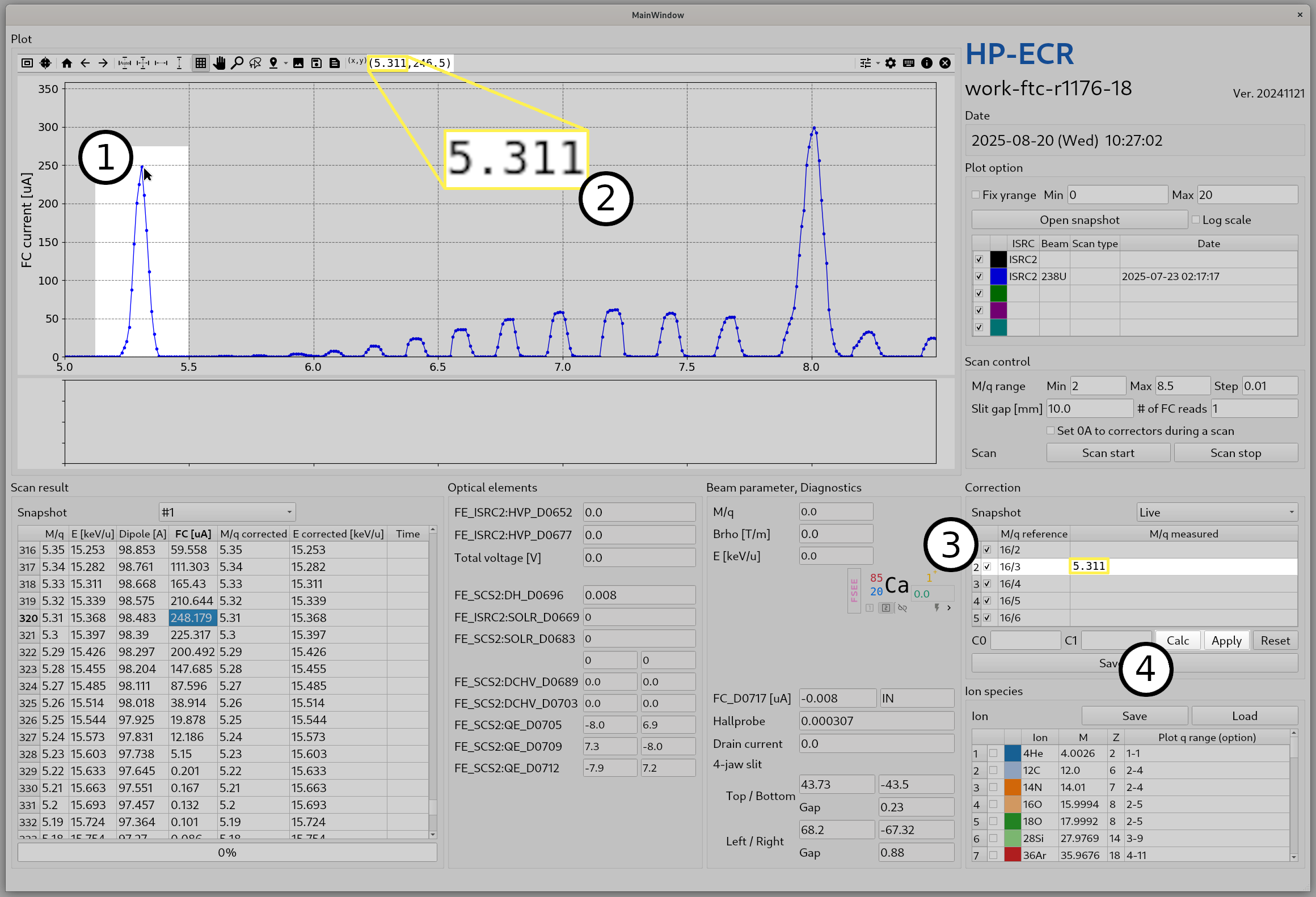

Use the cursor to get the position of each oxygen peak on the CSD
Fill in the measured positions in the M/q measured column
Click Calc to find the correction
Click Apply to use it

Oxygen peaks can be identified as they are the largest ones present
The measured M/q should be approximately 16/n

Showing reference lines
